Kutai ADVR-073 Automatic Voltage Regulator &generator parts

    Buy cheap Kutai ADVR-073 Automatic Voltage Regulator &generator parts from wholesalers

    Buy cheap Kutai ADVR-073 Automatic Voltage Regulator &generator parts from wholesalers
    • Buy cheap Kutai ADVR-073 Automatic Voltage Regulator &generator parts from wholesalers

    Kutai ADVR-073 Automatic Voltage Regulator &generator parts

    Ask Lasest Price
    Brand Name : Kutai
    Certification : CE
    Model Number : Kutai ADVR-073
    Payment Terms : TT or Western Union
    Supply Ability : 1000
    • Product Details
    • Company Profile

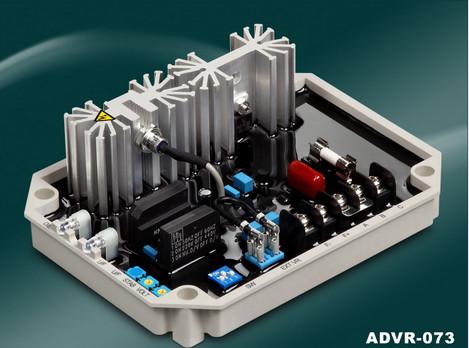

    Kutai ADVR-073 Automatic Voltage Regulator &generator parts

    ADVR-073 is an Hybrid Analog/Digital Voltage Regulator. It's desigined with CPU inside which eliminates voltage drifting that caused by temperature variation. This designed has greatly improves the reliability of AVR. ADVR-073 has over excitation and loss of sensing shutdown protections which will prevent AVR from damaging in overload situation.

    Features:
    Voltage regulation < +/- 0.5%
    220/380/440/480 Vac programmable input
    Rugged compact design
    With under frequency protection
    Over excitation protection
    Soft start voltage ramping
    EMI suppression
    Built-in high capacity 8 Amp fuse
    ————————————————————————————————————————————————————————
    Sensing Input Voltage 170~520 VAC 1 phase 2 wire DIP switch selectable
    Frequency 50 Hz / 60 Hz jumper selectable
    Power Input Voltage 100~300 VAC 1 phase 2 wire
    Output Voltage Max. 63VDC @ 220 Vac
    Current Current Continuous 5A Intermittent 7A for 10 sec.
    Resistance Min. 9 ohm , Max. 100 ohm
    Volts Regulation < ±0.5% (with 4% engine governing)
    Build Up Voltage Residual volts at AVR terminal > 5VAC
    Over Excitation Protection 78±5VDC @ 220 Vac 5 sec.
    External Volts Adjustment 7% with 1K ohm 1 watt trimmer
    Unit Power Dissipation Max. 8 watts
    Soft Start Ramp Time 3 sec.
    EMI Suppression Internal EMI filtering
    Thermal Drift 0.03% per°C change in AVR ambient
    Under Frequency Protection
    (Factory Setting) 60Hz system presets knee point at 55Hz
    50Hz system presets knee point at 45Hz
    Environment Operation Temperature : -40~70°C
    Storage Temperature :-40~85°C
    Relative Humidity : 95% (max.)
    Vibration 3G @ 100~2KHz
    AVR Controls Function VOLT : Voltage Adjustment
    STAB : Stability Adjustment
    U/F : Setting under frequency protection knee point
    O/E LED : Over excitation protection indicator
    U/F LED : Under frequency protection indicator
    Dimension 150.0 x 115.0 x 51.0 mm
    Weight 440 g +/- 2%
